Villa Elevator
Compact, quiet home elevators for villas, duplex apartments, townhouses and elder-care residences.
Key Features
Engineering features for Villa Elevator projects.
JAFITA home elevators bring safety, comfort and elegance to private residences and villas. Designed for low-rise buildings with compact shaft requirements, they are easy to install, quiet in operation and available in cabin styles that can be coordinated with the interior.
Compact Shaft DesignMinimal pit and overhead requirements suit both new and existing homes.
Quiet OperationNoise levels of 45 dB or less support residential comfort.
Drive OptionsHydraulic, gearless traction and screw drive routes match different structures.
Safety FirstEmergency battery lowering, overspeed protection and door interlocks are available.
Aesthetic CustomizationCabin finishes, lighting and handrails can be coordinated with the home.
Technical Specifications
Villa Elevator technical parameters.
Use these confirmed ranges as the baseline for quotation, then verify shaft conditions, power supply and local standards with the project team.
Parameter
Range / Options
Capacity
250kg - 630kg (3 - 8 persons)
Speed
0.25 - 1.0 m/s
Max Travel
Up to 20m (approximately 6 stops)
Drive Type
Hydraulic / Gearless traction / Screw drive
Pit Depth
Min. 300mm (hydraulic) / Min. 500mm (traction)
Overhead
Min. 2600mm
Shaft Size
From 1200mm x 1200mm
Power Supply
Single-phase 220V / Three-phase 380V
Door Type
Manual swing door / Auto sliding door
Standard
EN 81-41, GB/T 21739
Customization Options
Configuration choices for the target villa elevator project.
Available finishes and interfaces can be coordinated with the building, usage and target market.
Applications
Common applications for villa elevator projects.

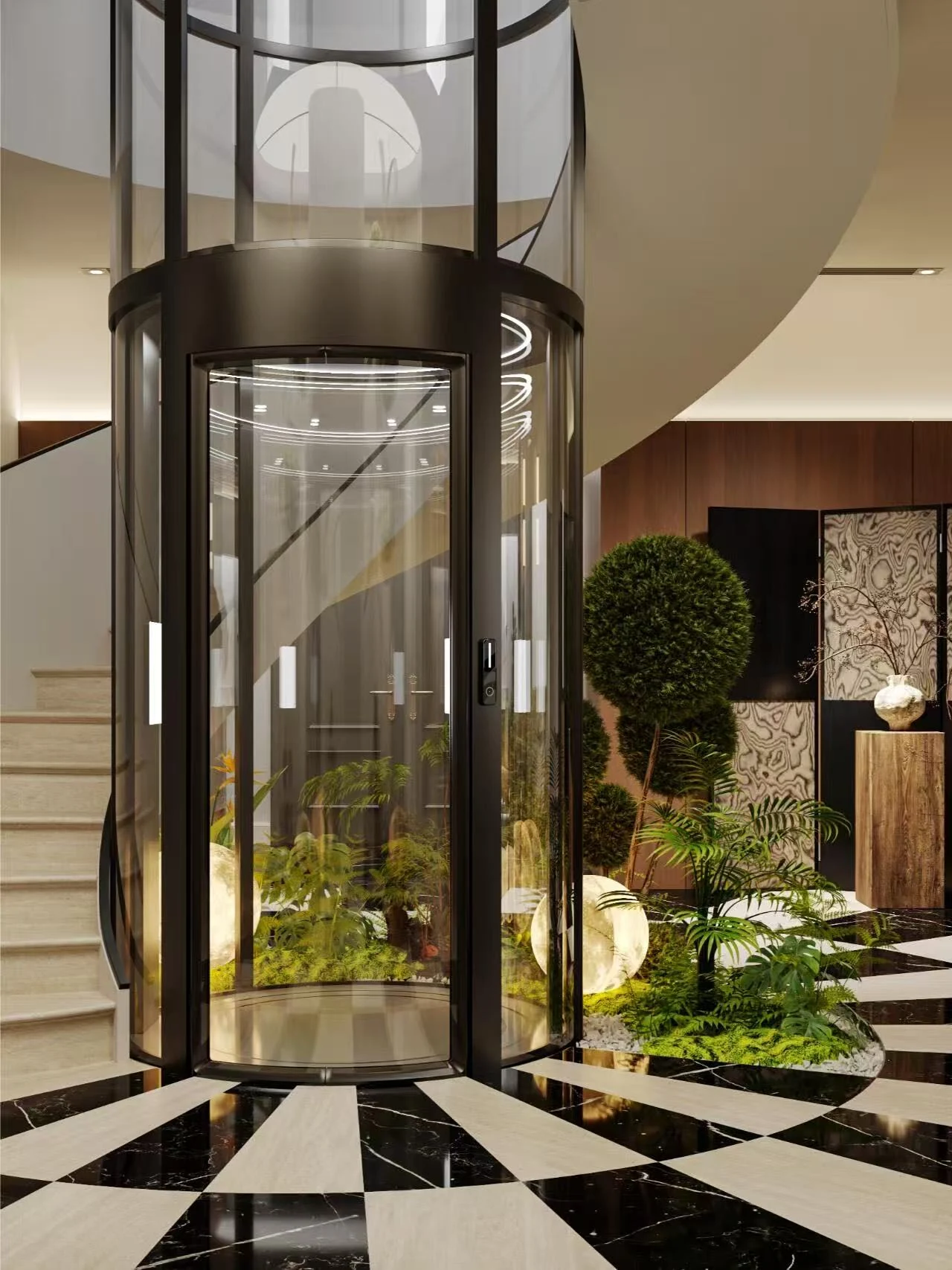

Private Villas, Duplex Apartments, Townhouses, Elder-Care Residences.

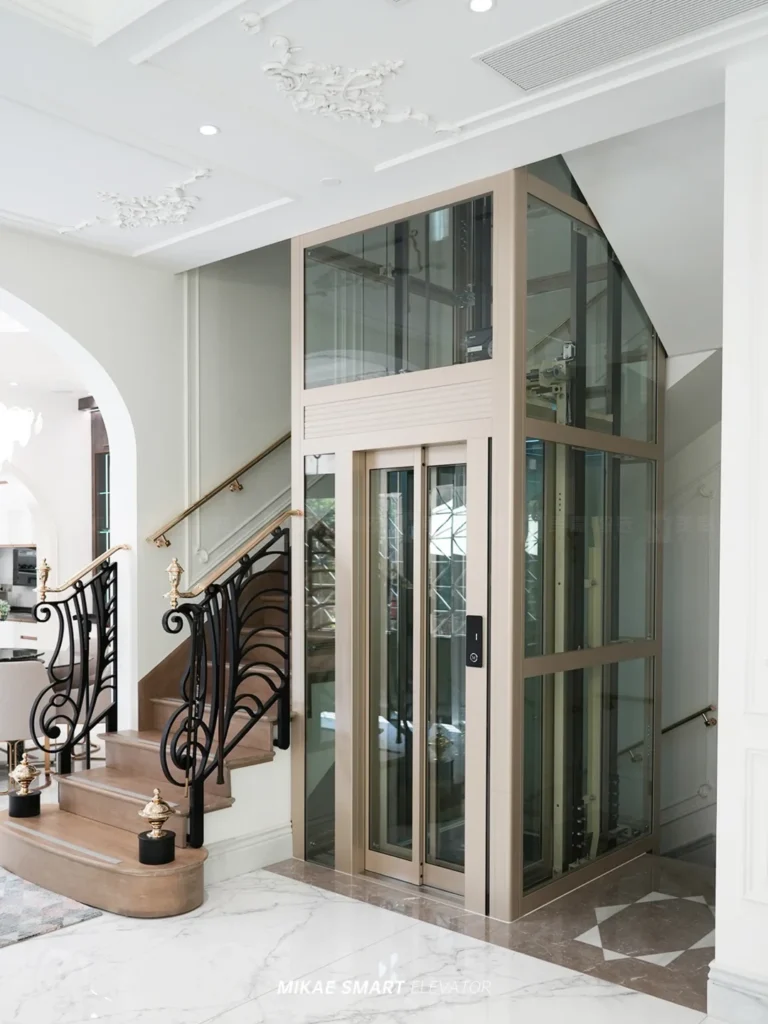

Duplex Apartments

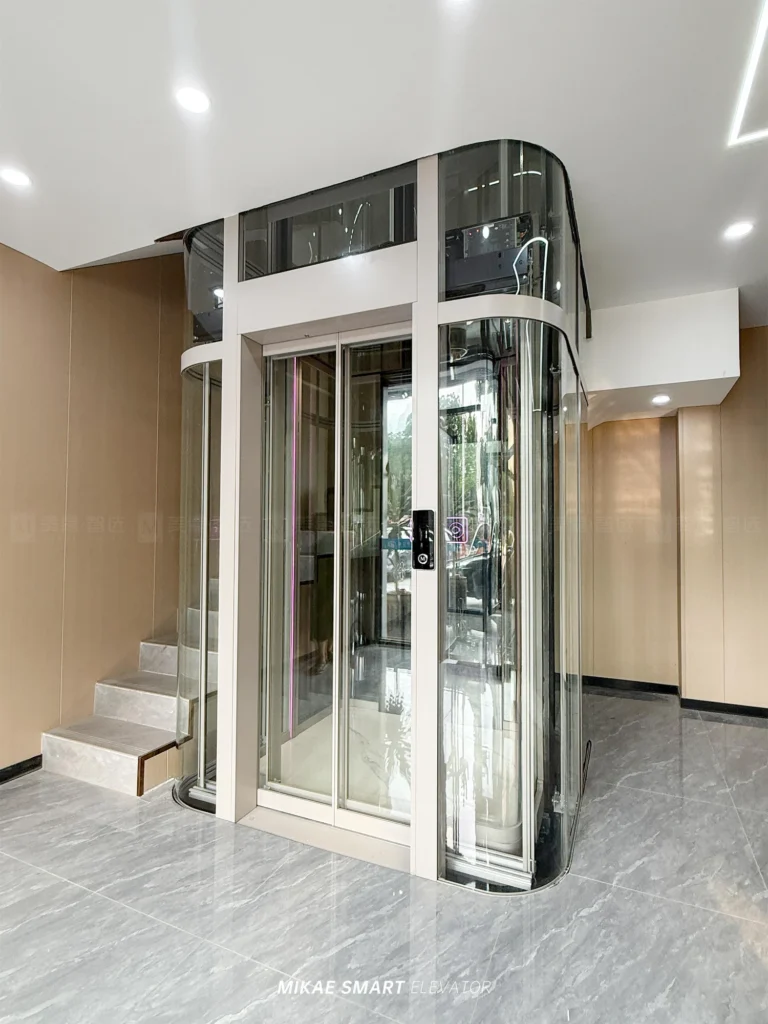

Townhouses

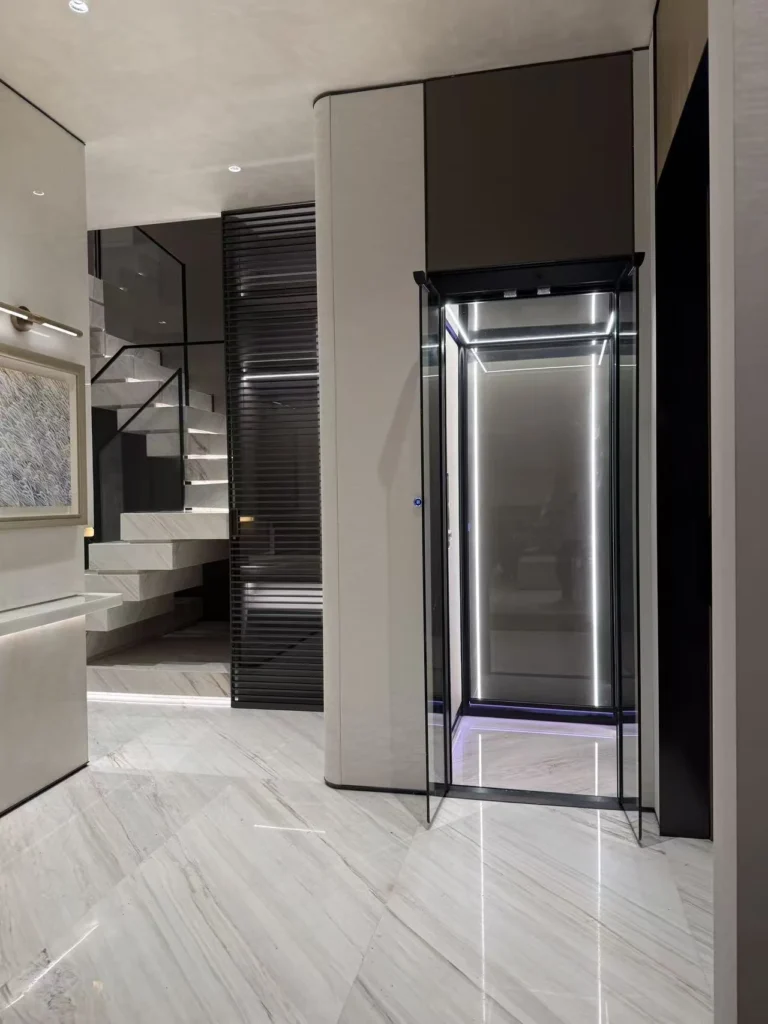

Elder-Care Residences
Villa Elevator FAQ
Answer the questions that slow procurement down.
Answers are based on the confirmed product information supplied for this product category.
What is the available capacity?
250kg - 630kg (3 - 8 persons)
What is the available speed?
0.25 - 1.0 m/s
What is the available max travel?
Up to 20m (approximately 6 stops)
What is the available drive type?
Hydraulic / Gearless traction / Screw drive
Inquiry Path
Send the project basics. Get a cleaner technical proposal.
Share product category, quantity, target load, travel height, shaft condition or building drawings. These details help the engineering team prepare a more accurate recommendation.
